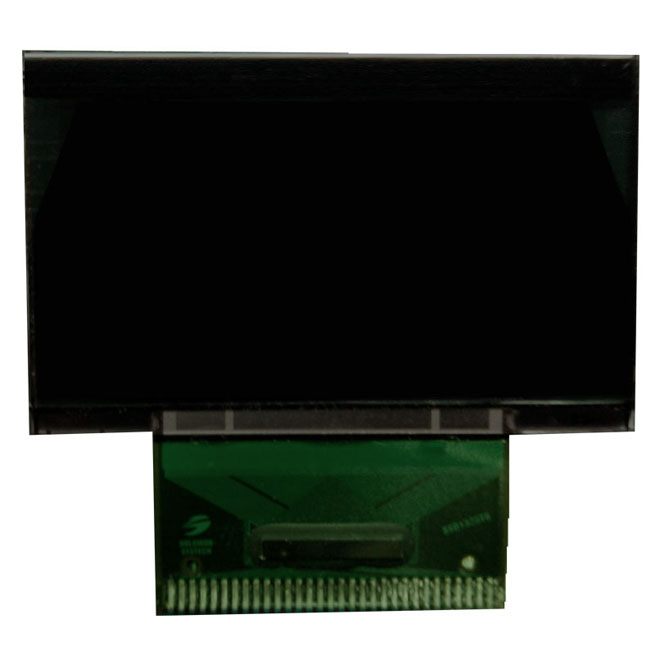

1.6″OEL9M0053-Y-E
| Item | Specification |
| Resolution | 128(H) x 64(V) Lines |
| Display Format | 8,192 Pixels |
| Active Area | 36.45 (W) x 18.21(H) mm |
| Outline Dimension (Panel) | 46.83(W) x 28.77(H) mm |
| Pixel Pitch | 0.285(W) x 0.285(H) mm |
| Pixel Size | 0.255(W) x 0.255(H) mm |
| Encapsulation type | Glass Can |
| Display color | Y |
| IC package type | TAB for Soldering / FPC With ZIF tail |
| Thickness | 2 mm MAX |
| Weight | < 5.8 g |
| Duty | 1/64 |
| Operating Temperature | -20～70℃ |
| Storage Temperature | -30～80℃ |
